ANSI B16.5 Stainless Steel Spectacle Blind Flanges, ANSI B16.47 Carbon Steel Spectacle Blind Flanges Manufacturer & Exporter

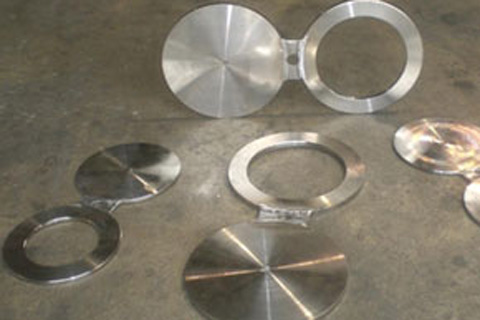

Chamunda Industries is a leading manufacturer and exporter of Spectacle Blind Flanges that are being designed as per the national and international standard quality of raw materials and thus making sure of their durability and high quality. We offer these flanges at market leading prices. Spectacle Blind Flanges is a pressure preserving plate with one open end and one solid end connected in with a tie-bar or web. In standard method, the open end shapes seals between the two flanges and permits a regular flow of flowing all over the pipe work. These flanges are being supplied in the course of suitable test certificates of standard raw materials and finished products.

Meanwhile, Spectacle Blind Flanges are at length used in particular conditions with their main advantage being that they can be connected to the pipe with no welding. Our Spectacle Blind Flanges can further be customized in terms of thicknesses, sizes and specifications as per the specific requirements of our clients.

Spectacle Blind Flanges Specification :

Standards : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size : 1/2" (15 NB) to 48" (1200NB)
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
BS : BS4504 , BS4504, BS1560, BS10
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673

Spectacle Blind Flanges Material & Grades :

Stainless Spectacle Blind On Flanges :

ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L

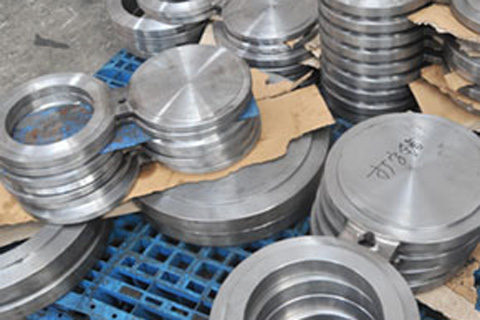

Duplex & Super Spectacle Blind Socket Weld Flanges :

ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61

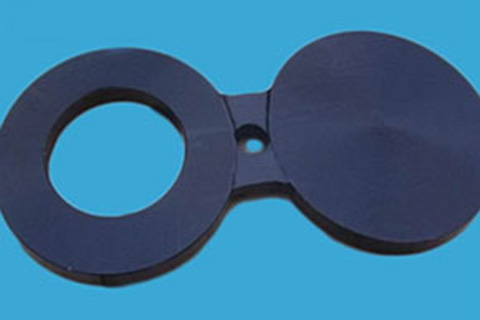

Carbon Steel Spectacle Blind Flanges :

ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706

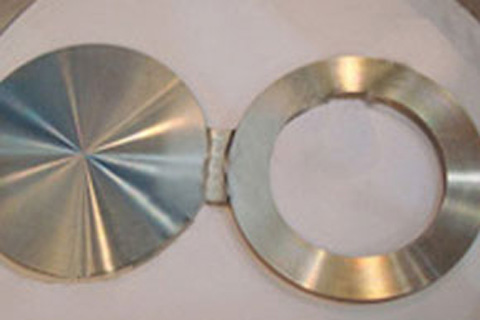

Alloy Steel Spectacle Blind Flanges :

ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91

Nickel Alloy Spectacle Blind Flanges :

ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020).

Copper Alloy Steel Spectacle Blind Flanges :

ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200.
