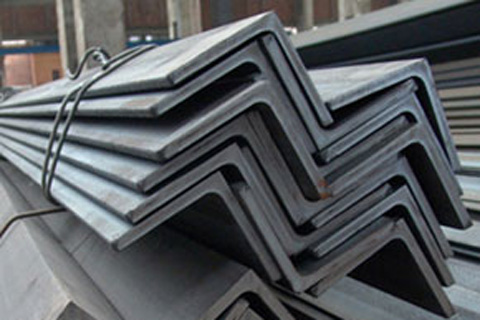

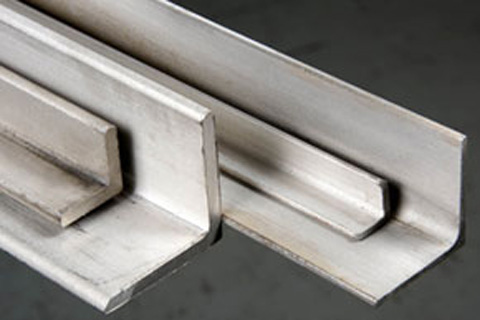

Stainless Steel Angle Bars, Duplex Steel Equal Angles, Carbon Steel Angle Bars Manufacturer & Exporter

Chamunda Industries are one of the renowned manufacturer, exporter, stockist, stock holder and supplier of a qualitative range of Angle Bars that are being designed as per the national and international standard quality of raw materials. We produce and distribute hot rolled and laser fused Steel Angles Bars throughout the world in both imperial and metric sizes. We strive to offer a remarkable quality of SS Angles to our esteemed clients and we have complete list of content clients for the reason that our products are being manufactured by using high graded stainless steel in the company of some premium quality and other raw materials that eventually outcome corrosion resistance, durable, abrasion resistance and accurate dimensions of Angles Bar. We can polish the bar to grit 400 & 600 & 800 according to customer's requirement with required tolearance.

Meanwhile, to meet the quality conscious requirements for our highly esteemed clients, we provide these bars in different sizes, grades and thickness as per customized requirements given by our customers.

Angle Bars Specification :

Specifications : EN, DIN, JIS, ASTM, BS, ASME, AISI, etc.
Size : 25mm x 25mm (1" equal angle) to 100mm x 100mm (4" equal angle) in thickness range of 2mm to 12mm
Thickness : 3mm to 20 mm
Finish : Hot Rolled, Annealed Pickled and Shot Blasted
Length : Upto 6 Meters

Size (mm) Weight per
metre (Kg)
Size (mm) Weight per
metre (Kg)
20 x 20 x 3 0.88 50 x 50 x 10 7.11
25 x 25 x 3 1.12 60 x 60 x 5 4.58
25 x 25 x 5 1.78 60 x 60 x 6 5.40
25 x 25 x 6 2.09 60 x 60 x 10 8.69
30 x 30 x 3 1.35 70 x 70 x 6 6.35
30 x 30 x 5 2.17 70 x 70 x 10 10.30
30 x 30 x 6 2.56 75 x 75 x 6 7.37
40 x 40 x 3 1.83 75 x 75 x 10 11.95
40 x 40 x 5 2.96 80 x 80 x 6 7.89
40 x 40 x 6 3.51 80 x 80 x10 12.80
50 x 50 x 3 2.30 100 x 100 x 6 9.20
50 x 50 x 5 3.75 100 x 100 x 10 15.0
50 x 50 x 6 4.46

Forged Bars Material & Grades :

Stainless Steel Forged Bars :

ASTM A276, ASTM A484 SS 201, 202, 301, 302, 303, 304, 304H, 304L, 316, 316H, 316L, 309, 309S, 310, 310S, 316Ti, 317, 317L, 347, 321, 321H, 410, 416, 420, 430, 430F, 431, 440C, 630, 17-4PH, F51

Duplex & Super Duplex Steel Forged Bars :

ASTM / ASME SA276 UNS NO. S31803 , S32205 , S32550, S32750, S32760.

Carbon Steel Forged Bars :

ASTM A105 / ASME SA105, ASTM A350 LF2, LTCS Bright Bar

Alloy Steel Forged Bars :

ASTM A350 F1, F2, F5, F9, F11, F22, F91, LF2, LF3

Nickel Alloy Forged Bars :

Nickel 200, Nickel 201, Monel 400, Monel K500, Inconel 600, Inconel 625, Inconel 718, Incoloy 800, Incoloy 825, Hastelloy C276, Hastelloy C22, Hastelloy B2, Alloy 20, 904L, Titanium Gr.2, Gr.5, Cu-Ni 90/10 (C70600), Cu-Ni 70/30 (C71500).
