ASME / ANSI B16.9 SS Long Radius Elbow, Carbon Steel 90deg. SR Elbow Manufacturer & Exporter

Chamunda Industries is a leading manufacturer and exporter of Elbow Buttweld Pipe Fittings that are being designed as per the national and international standard quality of raw materials and thus making sure of their durability and high quality. Elbows are also commonly referred as bends, and are available in a range of materials such as stainless steel, carbon steel, alloy steel, nickel alloys, duplex, cupro nickel and others. An elbow is a pipe fitting which is used as a connection point between two lengths of pipes to produce a change in the direction of flow in the pipe, usually at an angle of 90°, 45° or 180°. Also known as 90° bends, 90° elbows are manufactured as SR (Short Radius) elbows and LR (Long Radius) elbows. Meanwhile, 45° elbows are typically made as LR (Long Radius) elbows.

Our Buttweld Elbow Pipe Fittings can further be customized in terms of thicknesses, sizes and specifications as per the specific requirements of our clients. We offer the same at market leading prices.

ASME / ANSI B16.9 90° Elbow & 45° Elbow Specification :

Standards : ASME / ANSI - B 16.9, ASTM A403 - ASME SA403, ASME B16.9, ASME B16.25, ASME B16.28, MSS SP-43.
Size : Seamless Elbow ( 1/2”~24”), ERW / Welded / Fabricated Elbow (1/2”~48”)
Thickness : Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Type : Seamless / ERW / Welded / Fabricated
Form : Elbow, 45 ° Elbow, 90 ° Elbow, 180 ° Elbow, Long Radius Elbow, Short Radius Elbow, 1D Elbow, 3D Elbow, 5D Elbow

ASME / ANSI B16.9 Butt weld Elbow Material & Grades :

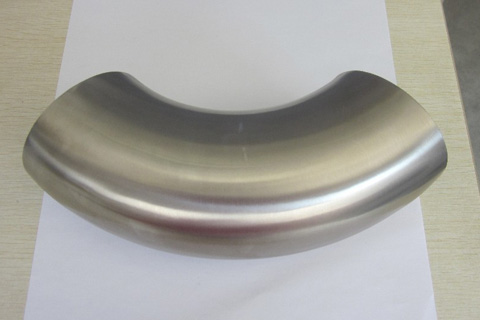

Stainless Steel Elbows :

ASTM A403 WP316/316L, ASTM A403 SA / A 774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404

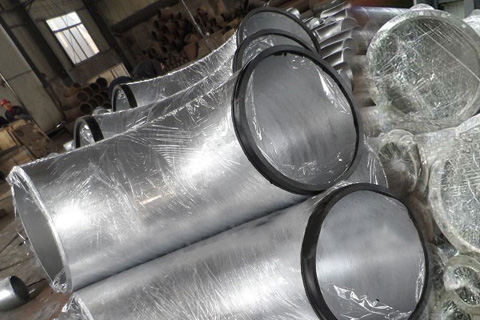

Duplex & Super Duplex Steel Elbows :

ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462

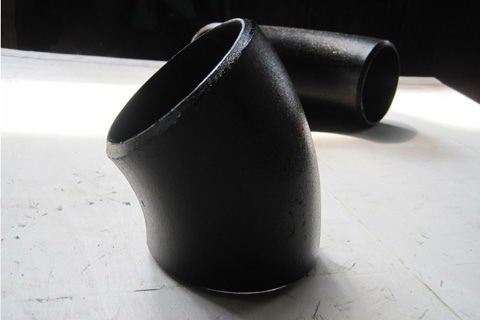

Carbon Steel Elbows :

ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

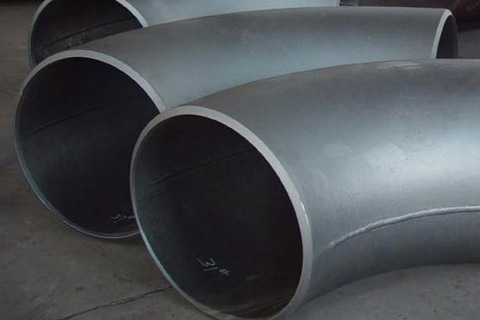

Alloy Steel Elbows :

ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Nickel Alloy Elbows :

ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )
