ASME B16.11 SS Threaded Street Elbows, Carbon Steel Threaded Street Elbows Manufacturer & Exporter

Chamunda Industries is a leading manufacturer and exporter of Forged Fittings Street Elbows that are being designed as per the national and international standard quality of raw materials and thus making sure of their durability and high quality. A street elbow (sometimes called a street ell or service ell) is a type of plumbing or piping fitting intended to join a piece of pipe and another fitting at an angle. Our Forged Street Elbows can be used in water supply, drainage, sewers, vents, central vacuum systems, compressed air and gas lines, HVAC, sump pump drains, and any location where plumbing fittings would be used to join sections of pipe.

Our Street Elbows Forged Fittings can further be customized in terms of thicknesses, sizes and specifications as per the specific requirements of our clients. We offer these fittings at quite market leading prices.

ASME B16.11 Forged Street Elbows Specification :

Dimension : ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Standards : ASTM A182, ASTM SA182
Size : 1/4" NB TO 4" NB
Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type : Socketweld Fittings & Screwed-Threaded NPT, BSP, BSPT Fittings

ASME B16.11 Forged Street Elbows Material & Grades :

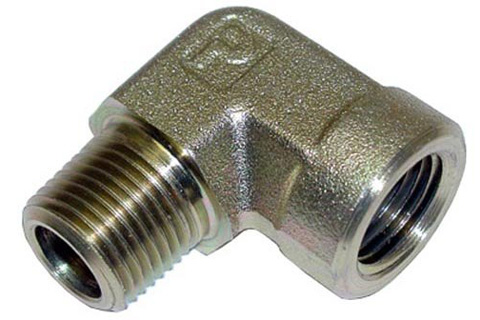

Stainless Steel Forged Street Elbows :

ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L

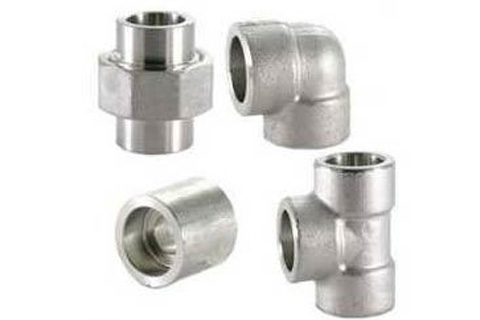

Duplex & Super Duplex Steel Forged Street Elbows :

ASTM A 182 - F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.

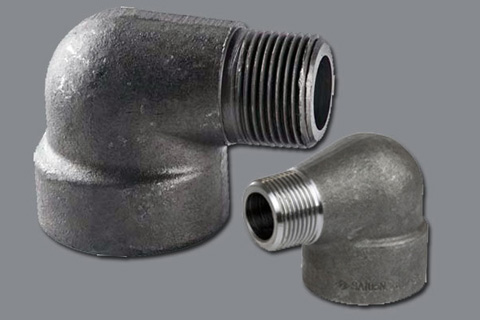

Carbon Steel Forged Street Elbows :

ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C

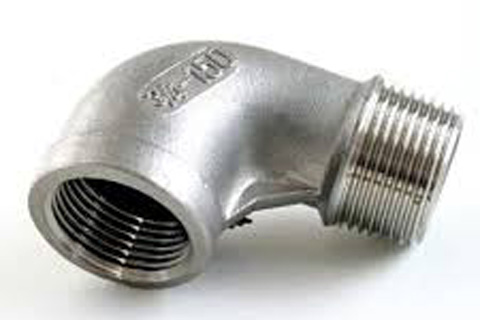

Alloy Steel Forged Street Elbows :

ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91

Copper Alloy Steel Forged Street Elbows :

ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

Nickel Alloy Forged Street Elbows :

ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)
