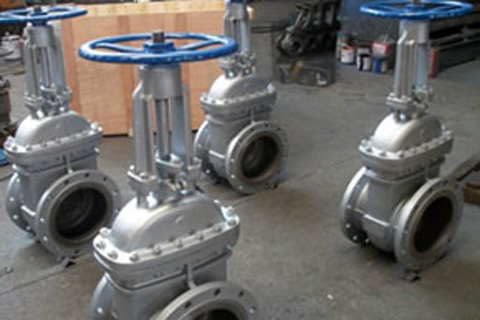

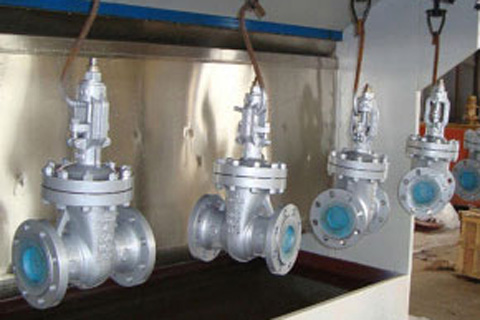

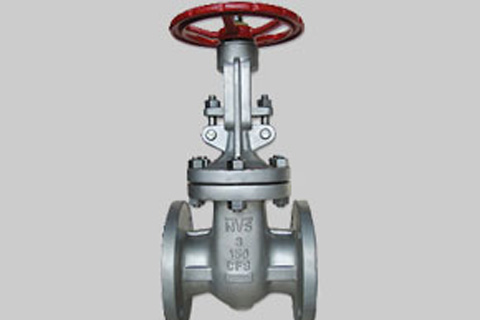

Chamunda Industries are one of the renowned manufacturer, exporter, stockist, stock holder and supplier of a qualitative range of Gate Valves that are being designed as per the national and international standard quality of raw materials. A gate valve, also known as a sluice valve, is a valve that opens by lifting a round or rectangular gate/wedge out of the path of the fluid. The distinct feature of a gate valve is the sealing surfaces between the gate and seats are planar, so gate valves are often used when a straight-line flow of fluid and minimum restriction is desired. Gate valves are primarily used to permit or prevent the flow of liquids, but typical gate valves shouldn't be used for regulating flow, unless they are specifically designed for that purpose.
Meanwhile, to meet the quality conscious requirements for our highly esteemed clients, we provide these valves in different sizes, grades and thickness as per customized requirements given by our customers.
Valve Type | Class Rating | Size Range | Shell Material As Per Specification |
Gate | 150# | ½ " to 72" | ASTM A216 Gr. WCB ASTM A217 Gr. WC1 ASTM A217 Gr. WC6 ASTM A217 Gr. WC9 ASTM A217 Gr. C5 ASTM A217 Gr. C12 ASTM A351 Gr. F8 ASTM A351 Gr. F3 ASTM A351 Gr. F8M ASTM A351 Gr. CF3M ASTM A351 Gr. CN7M ASTM A351 Gr. CF8C ASTM A351 Gr. CD4Mcu ASTM A351 Gr. CK3MCuN ASTM A352 Gr. LCA ASTM A352 Gr. LCB ASTM A352 Gr. LCC ASTM A494 Gr. CW6MC ASTM A494 Gr. CW2M ASTM A494 Gr. CW2M ASTM A494 Gr. CY40 ASTM A494 Gr. CU5MCuC ASTM A995 Gr. 1A ASTM A995 Gr. 4A ASTM A995 Gr. 5A ASTM A995 Gr. 6A NACE malt. Grade to NACE MR0175/NACE MR |
Gate | 300# | 2" to 48" | |
Gate | 600# | 2" to 42" | |
Gate | 800# | ½ " to 2" | |
Gate - PRESSURE SEAL | 900# | ½" to 24" | |
Gate - PRESSURE SEAL | 1500# | ½" to 24" | |
Gate - PRESSURE SEAL | 2500# | ½" to 12" | |
Gate - CRYOGENIC | 150# | 2" to 36" | |
Gate - CRYOGENIC | 300# | 2" to 36" | |
Gate - CRYOGENIC | 600# | 2" to 24" |
Note :
Valves Can be Supplied With Actuator,Pad Lock and Other Accessories Like Limit Switch, Position Indicator, Solenoid Valve as Per Requirement
Stem Extention, Underground Service Features are Available
Design Standard Upto 24" IS API 600 and Above 24" IS BS 1414.
Design Standard | API 600/BS1414 | |
Testing Standard | API 598/BS EN 12266-1 | |
Face To Face | ASME B 16.10 | |
End Connection | Flanged End - ASME B 16.5 Butt Weld End - ASME B 16.25 |
|
Pressure - Temperature Chart | ASME B 16.34 |
Operator | Size Range |
Handwheel | 2" - 10" - Class 150, 300, 600 |
2" - 4"- Class 900 & 1500 | |
Gear Operator | 12" & Above - Class 150, 300, 600 |
6" & Above - Class 900,1500 |
STRUCTURE | End Connection | Flanged End Raised Face, Butt Weld End, RTJ,. ETC | |
Operation | Hand wheel, Gear Operator, Electrical Actuator, Pneumatic, Hydraulic | ||
MATERIAL | Shell | WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu, Hastelloy, Inconel, Duplex Stainless Steel |
|
Trim | 13% Cr Steel, 304 , 304L, 316, 316L, 321, 347, F51, Monel |
